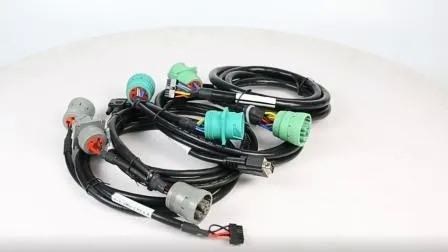

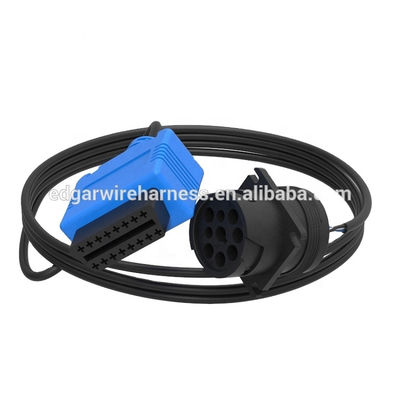

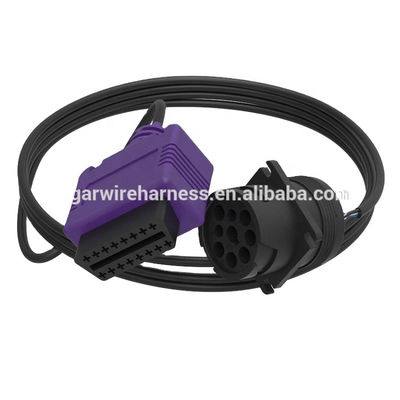

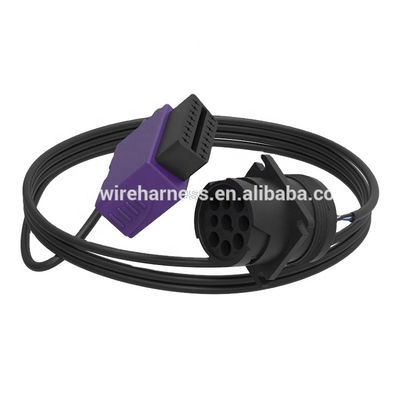

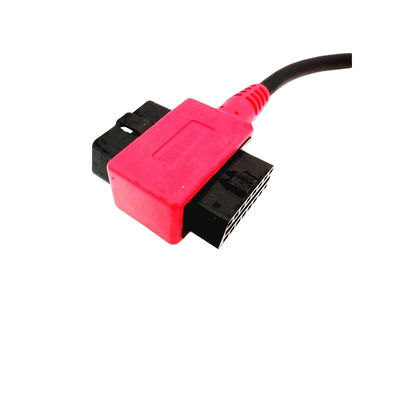

Durable 9-Pin Deutsch Connector J1939 to OBD2 Adapter Cable with IP68 Waterproof and Customized Length for Heavy-Duty Use
Productdetails:
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 10.000 |
|---|---|
| Prijs: | 10 |
|
Gedetailleerde informatie |
|||
| Model nr.: | J1939 & J1962 | Connector B: | 8 9 16 pinnen |
|---|---|---|---|
| Connector A: | D-SUB 9-pins | Lengte: | Aangepast |
| Verbindingsmerk: | Deutsch J1939 HD-16-9-1939s-P080 | Bedrijfstemperatuur: | -40 aan +125°C |
| Trillingsweerstand: | 20 g's op 10-2000Hz | IP -beoordeling: | IP68 |
| Waterdichte diepte: | 1,2 meter gedurende 24 uur | Type terminal: | 1060-16-0122 |
| Draadtype: | UL 1007 18# / 16# | Contactbehoud: | 20 pond |
| Trimsplantaatje: | >20 lbs (18#) / >25 lbs (16#) | Faalmodel: | Draadschade / doorvoertule kapot |
| Productiecapaciteit: | 100000 stuk/stukken per maand | ||
| Markeren: | Durable 9-Pin Deutsch Connector J1939 to OBD2 Adapter Cable,IP68 Waterproof J1939 to OBD2 Adapter Cable,Customized Length Diagnostic Cable |
||
Productomschrijving
The EDG-HD series is an environmentally silicone rubber sealed, thermoplastic cylindrical connector designed for faster, easier, trouble-free assembly in heavy-duty industries including trucks, buses, cross-country vehicles, cranes, and forklifts. When mated, the contacts are protected from water, dust, lubricating oils, fuel, road salt, grease, mud, and other contaminants.
- Operating temperature range: -40°C to +125°C (no cracking, chipping, or leaking after 20 test cycles)
- Withstands sinusoidal vibration levels of 20 G's at 10-2000Hz in three mutually perpendicular planes for 2 hours
- IP68 waterproof rating - withstands immersion under 1.2 meters of water for 24 hours
| Model | Terminal Type | Wire Type | Contact Retention | Ref Crimp Tensile | Failure Model |
|---|---|---|---|---|---|
| EDG-HD10-9-1939P-P080 | 1060-16-0122 | UL 1007 18# | 20 LBS | >20 LBS | Wire damage |
| EDG-HD10-9-1939P-P080 | 1060-16-0122 | UL 1007 16# | 20 LBS | >25 LBS | Grommet broken |
| EDG-HD16-9-1939S-P080 | 1060-16-0122 | UL 1007 18# | 20 LBS | >20 LBS | Wire damage |
| EDG-HD16-9-1939S-P080 | 1060-16-0122 | UL 1007 16# | 20 LBS | >25 LBS | Grommet broken |
Packaging details can be customized according to client specifications. Standard lead times:
| Quantity (PCS) | 1 - 1000 | 1001 - 5000 | >5000 | Mold/Tooling |
|---|---|---|---|---|
| Estimated Time (Days) | 20 | 25 | To be negotiated | 30 days more |
Shipping options include international express (DHL, UPS, FedEx, TNT, ARAMEX, EMS) or customer's choice of air/sea freight.
A: Yes, we are an ODM/OEM company specializing in wire harness & cable assembly since 1999.
A: We sketch simple solutions for initial discussion. After quotation and order placement, we begin detailed drawings and confirm with the client.
A: Our quality and engineering team responds to quality issues within 72 hours, committed to long-term customer relationships and better service.
A: Yes, we have developed over 1000 sets of molds, some available for direct customer use, plus 20+ years of wire harness expertise with 5000+ products.
